DIY Sleeping and Storage Platform for 2 Door 2018 Jeep Wrangler JL UPDATE



The response to the 2 Door Jeep Wrangler JL Sleep and Storage platform build has been incredible, thank you all for your support and love in my adventure in 2 door Jeep love and life.

 I have an updated plan for ya'll!  Getting the main pieces fitted is what took the majority of my time, so I disassembled all of it and took the old upholstery off in order to get what the final measurements were that I used so it might be easier for anyone else to create!

 With these plans, you should be able to cut all the main parts and then piece the rest of the job together quite easily and customize to however you like.

 As I discussed in the original video and post, the upholstery I worked with the first time around was VERY difficult to so I replaced it this winter with a lighter marine carpet, less waterproof but more pliable, and used construction adhesive under it to keep it all tight and in place.  I went with a more speckled and lighter color to hide the dust you get driving around topless all summer.

Final pieces:

 5 cuts of 3/8" ply for surfaces
2 2x4 stud walls
2 2x4 cross members
2 1x2 cross members
1 tube steel or support slide
2 2x4 side access block on the hatch
4 hinges, 2 for hatch, 2 for platform extention
2 large U bolts
2 medium U bolts
8' length of TrafficMaster 6' Marine Indoor/Outdoor Carpet

You'll need different sized U bolts for the front vs. rear when attaching the 2x4 verticles but otherwise whatever bolts you want to use for the rest are a preference.  I drilled the holes with everything in place so there are no set measurements for those.

I built a 1/4 to o1/2 gap between all the pieces for hinge movement and upholstery.

I placed all ply and bolts/holes before upholstery so they are hidden from above.

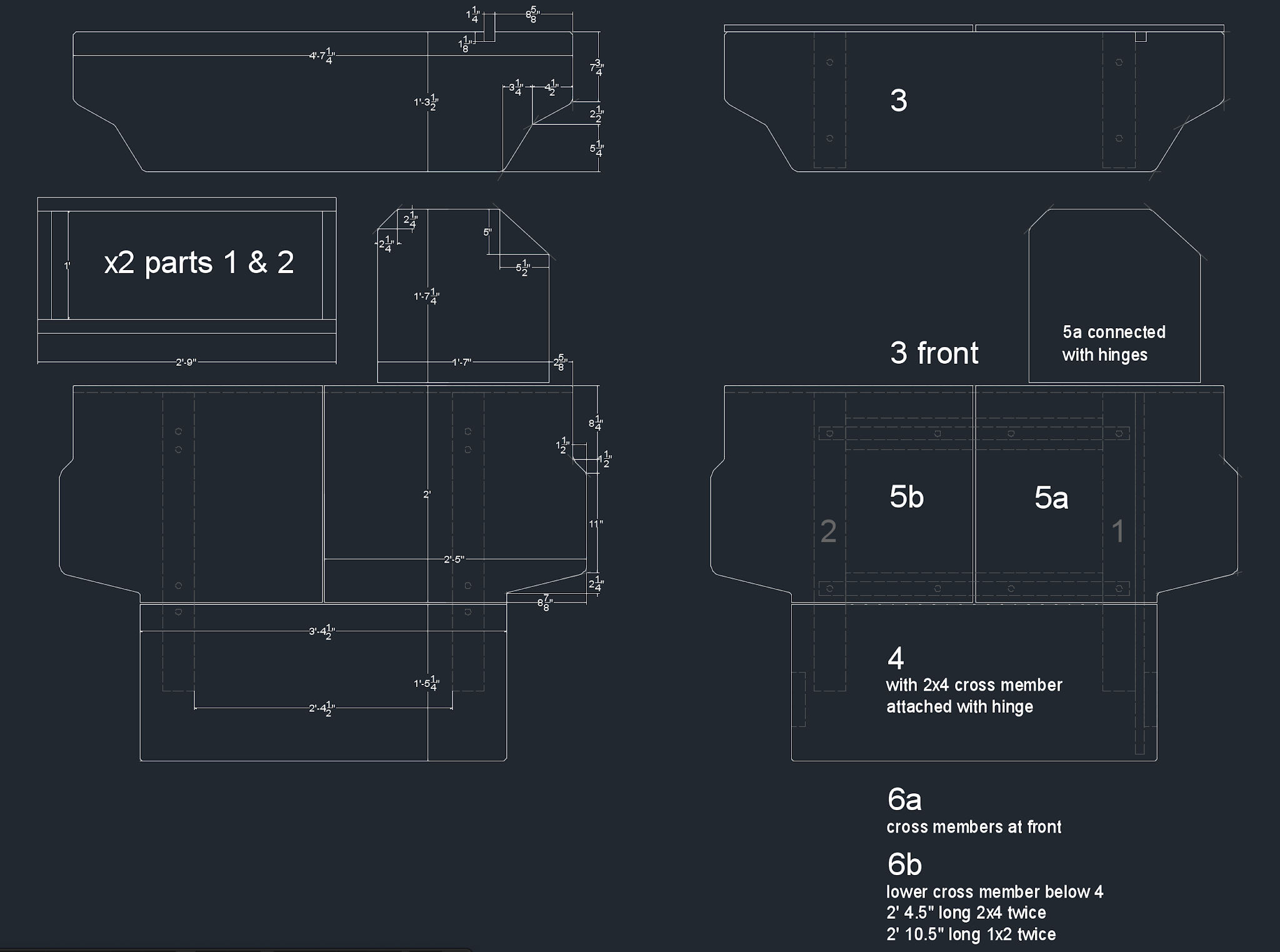

Here are the final dimensions and drawings for parts and pieces to cut:


I'm sure everyone will have their own tweaks and fixes of their own and I'd love to see them!

I hope this helps those who want to tackle this job to have one of the most time-consuming parts I struggled with already done.

Here's the presentation of the original build (I promise to get out an updated video showing the new upholstery and a few build details by this next spring)
